Ecophon Solo™ Freedom

Ecophon Solo™

Free-hanging units and baffles

Free-hanging acoustic leaf-shaped panels in conference room

Custom-shaped free-hanging absorbers

Solo Freedom allows you to create your own custom shapes as free-hanging units. Either install the panels with wires, or brackets for a close to soffit installation.

Superior acoustic qualities
Straight painted edge in the same colour as surface
Custom-made shapes in your own design

Get inspired

Find inspiration in our library of Solo Freedom installations from all over the world.

Acoustics

See Ecophon Solo™ Square acoustic properties

Technical properties

See Ecophon Solo™ Square technical properties

Maintenance guide

Download Solo Freedom maintenance guide

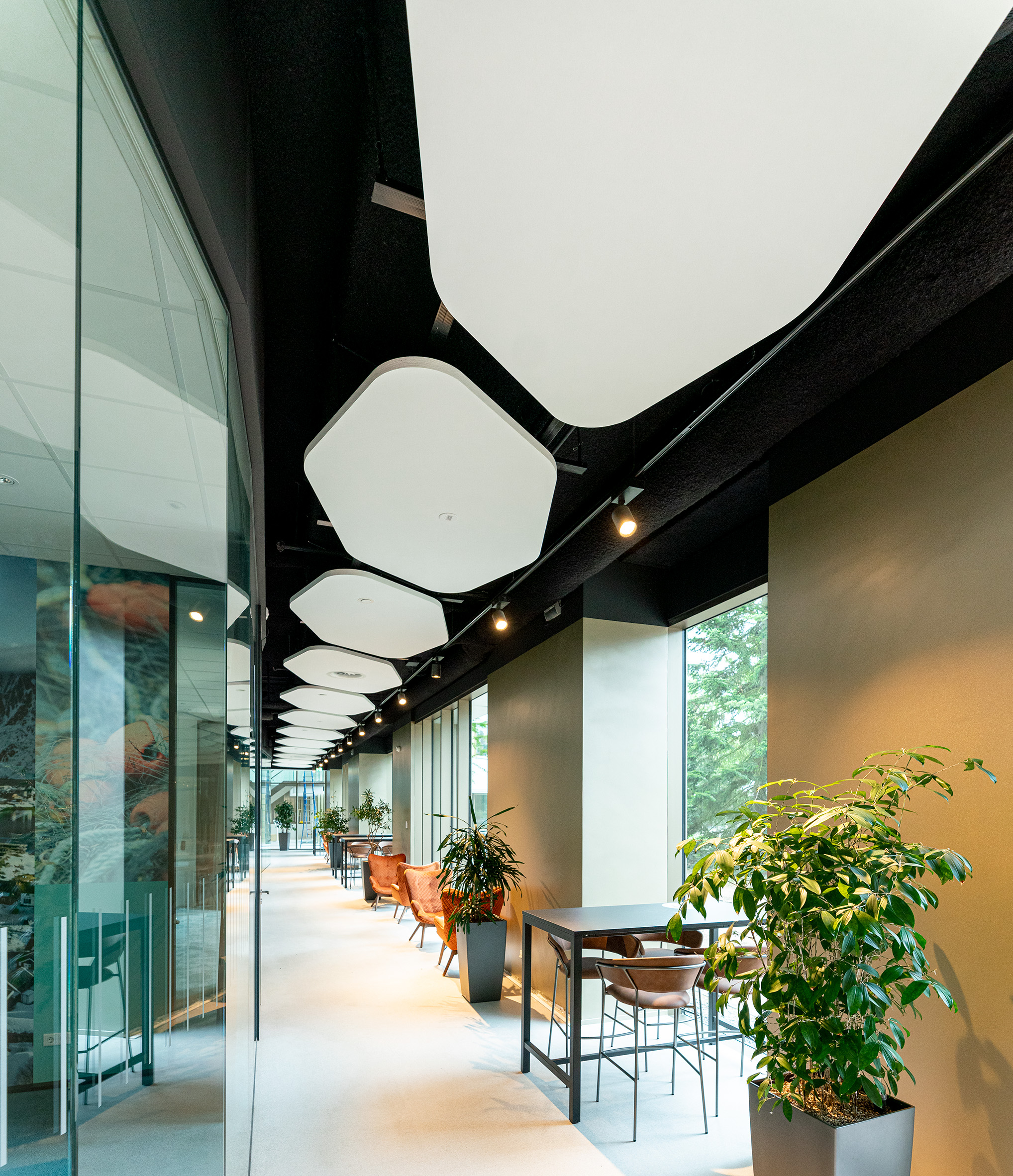

Free-hanging acoustic panels in office corridor

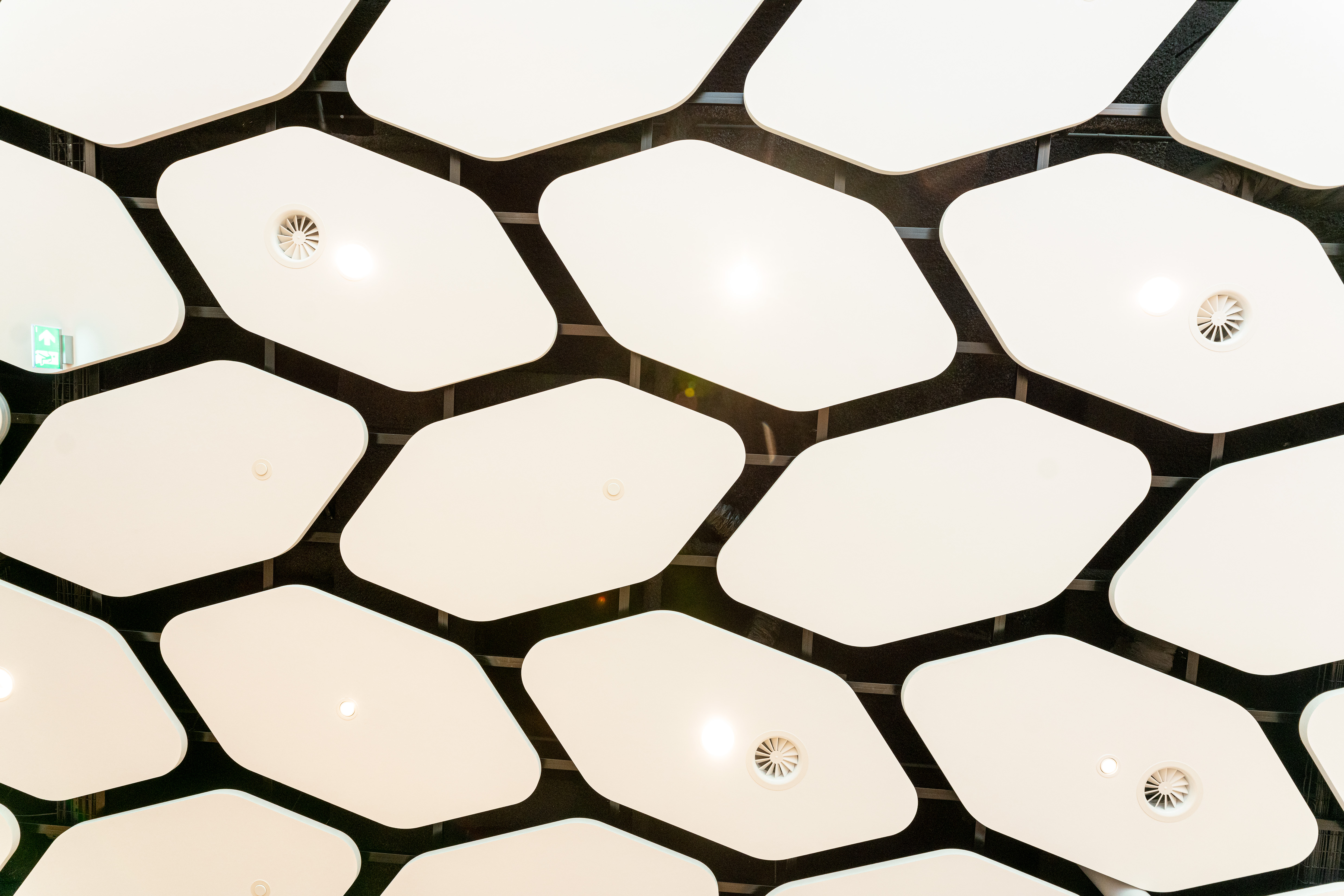

Close-up of free-hanging acoustic panels

Free-hanging acoustic panels in office lounge area

Create your shape

Green, leaf-shaped free-hanging acoustic panels in office

3 steps to create your shape

Create striking shapes and a gentle sound environment with Solo Freedom. Draw your own custom shapes and create a unique expression.

Step 1: Create your shape

Create a dwg file and a pdf according to Drawing guide.
Specify the quantity per shape.
Specify the colour per shape (see Akutex™ FT colours).

Close-up of hand making a sketch on a wall

Drawing of acoustic panel

Step 2: Send shape

Send your created shape to your local Ecophon customer support

Step 3: Price offer delivered to you

Price offer delivered to you from Ecophon

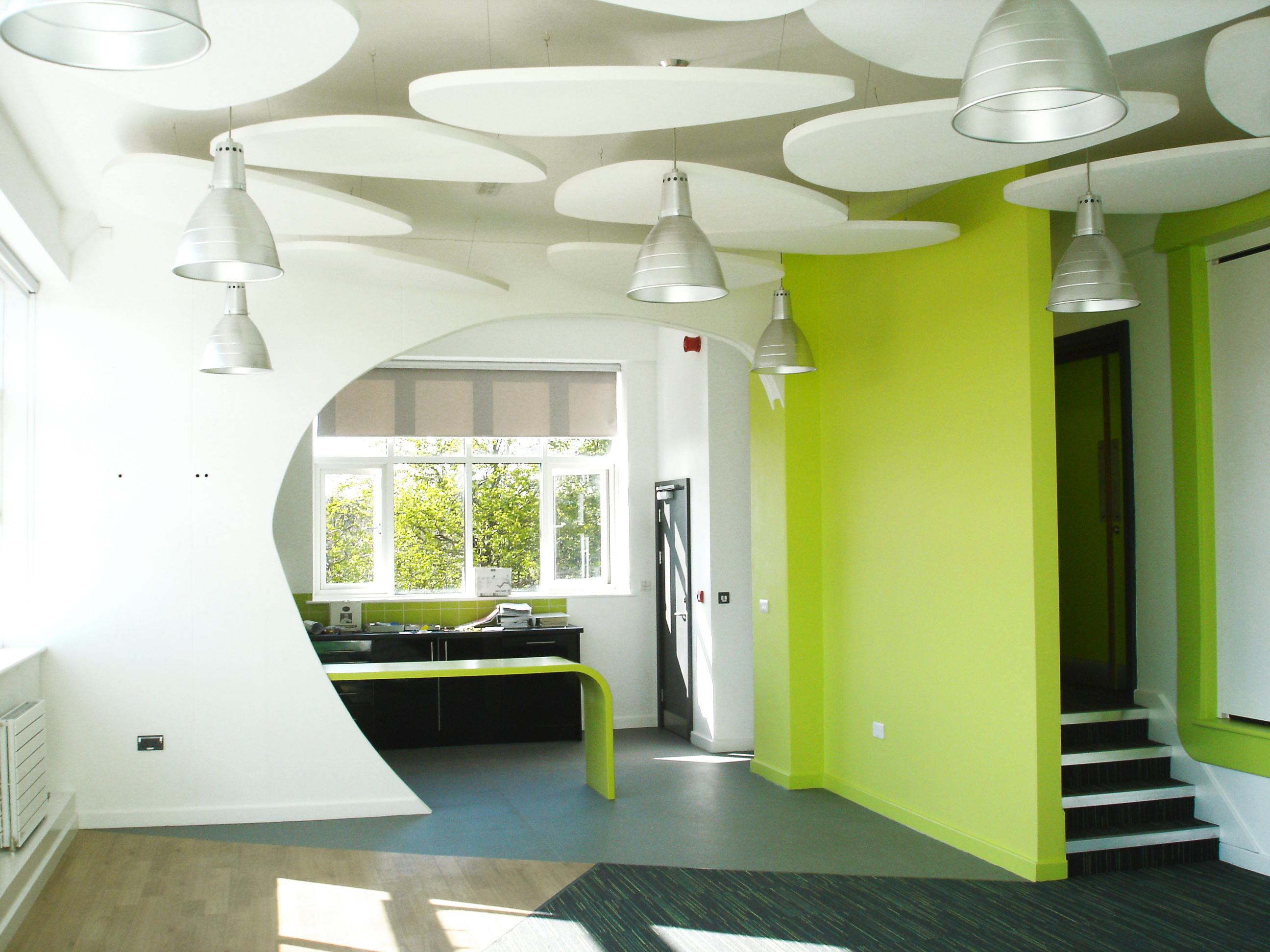

Free-hanging acoustic panels in office

Available sizes

Solo Freedom shapes originates from two different Solo Rectangle panels; 1200x2400mm or 1200x3000mm.
Minimum panel size 300x500mm.
Maximum panel size 1200x3000mm.
For shapes bigger than maximum panel size, the shape can be created out of several panels.

Appearance

Installation

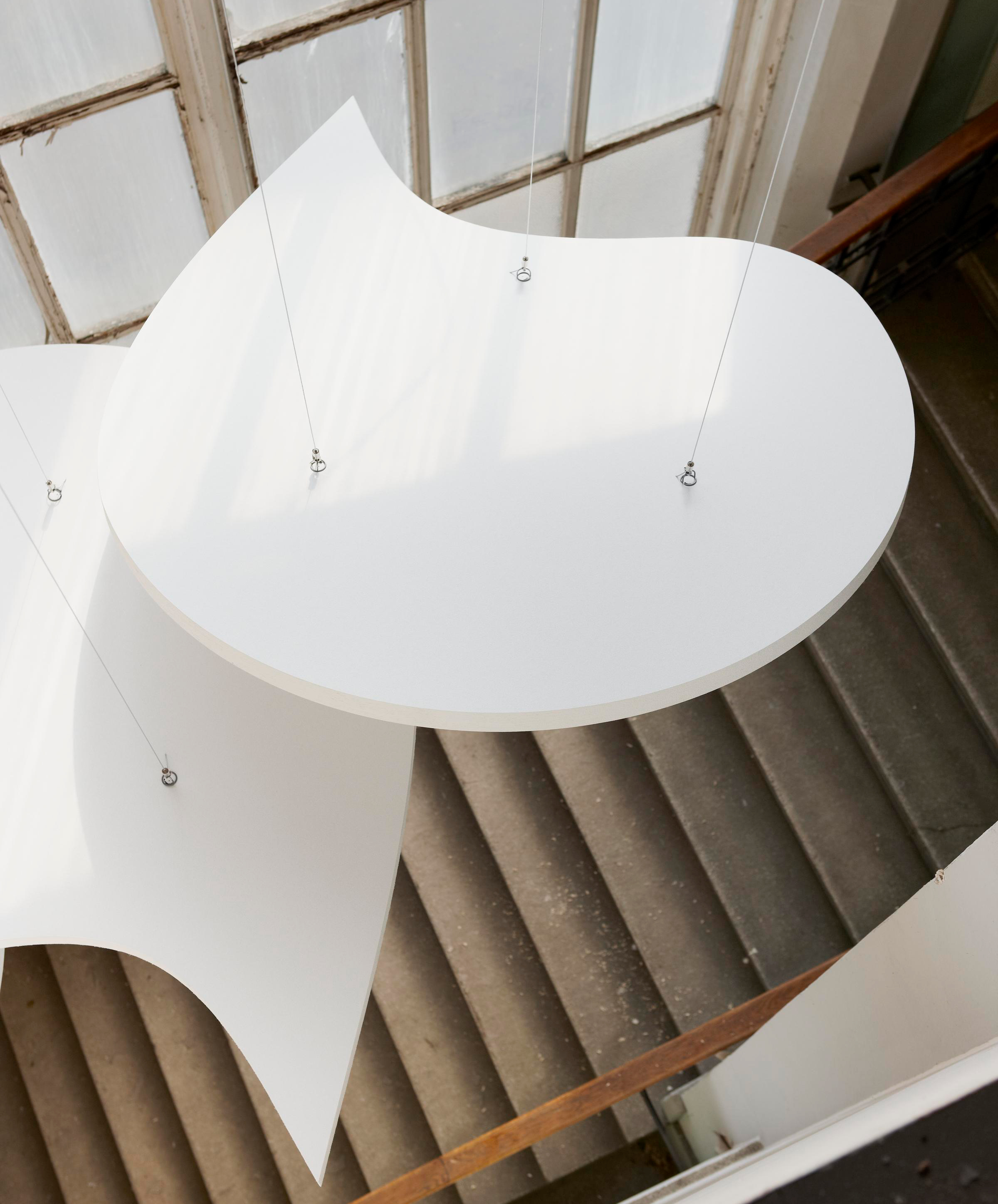

Free-hanging acoustic panels seen from above

Installation methods

The panels are easily installed, using wires or brackets. The wires enable a panel to be installed up to 5 meters from the ceiling, or even in layers. For a close to soffit installation the brackets are available in two different distances.

Installation with adjustable height

With adjustable wire hanger and adjustable wire kit.

Adjustable wire hanger can be installed up to 5 meters from the ceiling.

Wire kits are available in 800mm and 1500mm.

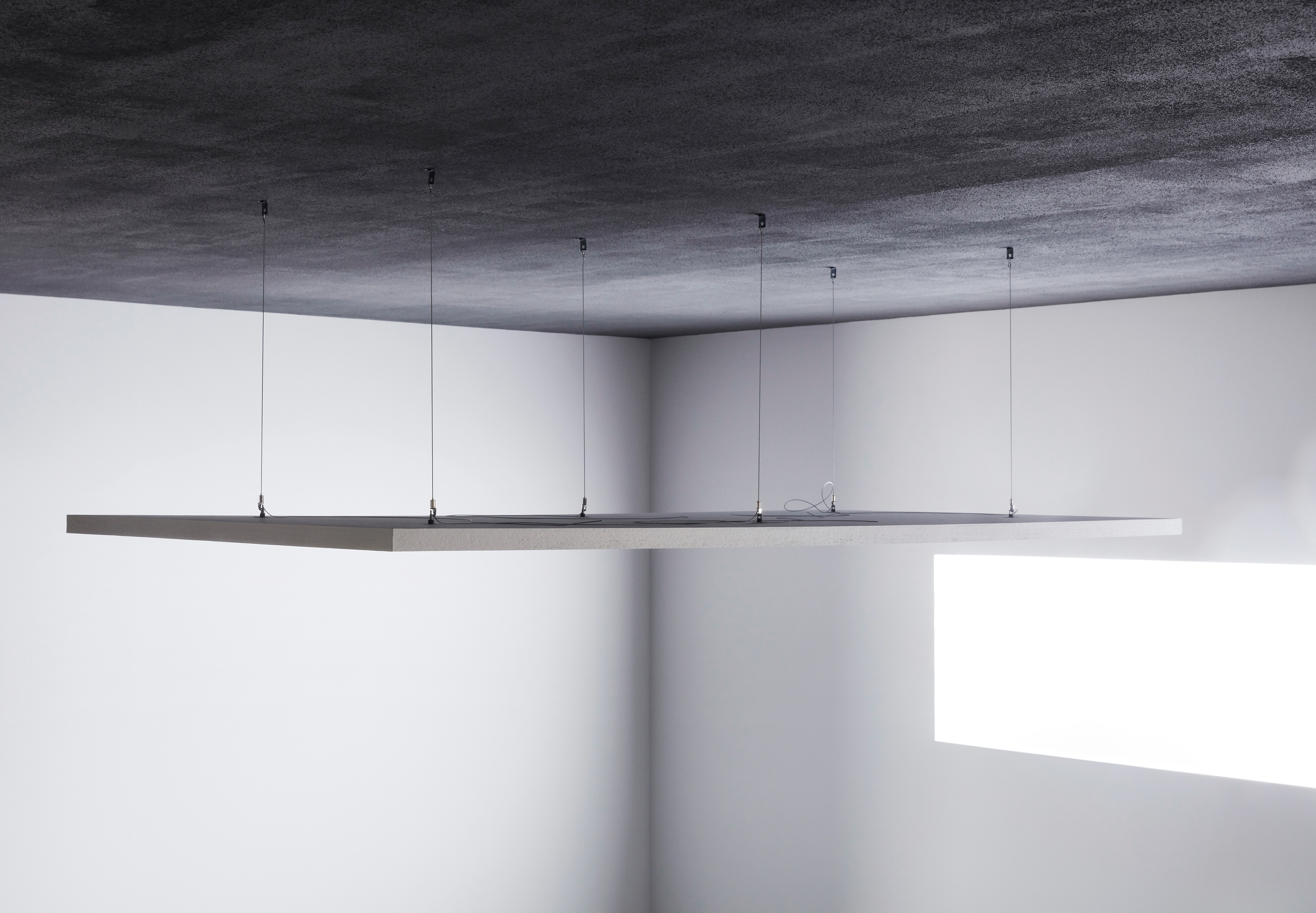

Free-hanging acoustic panel installed with height adjustable wires

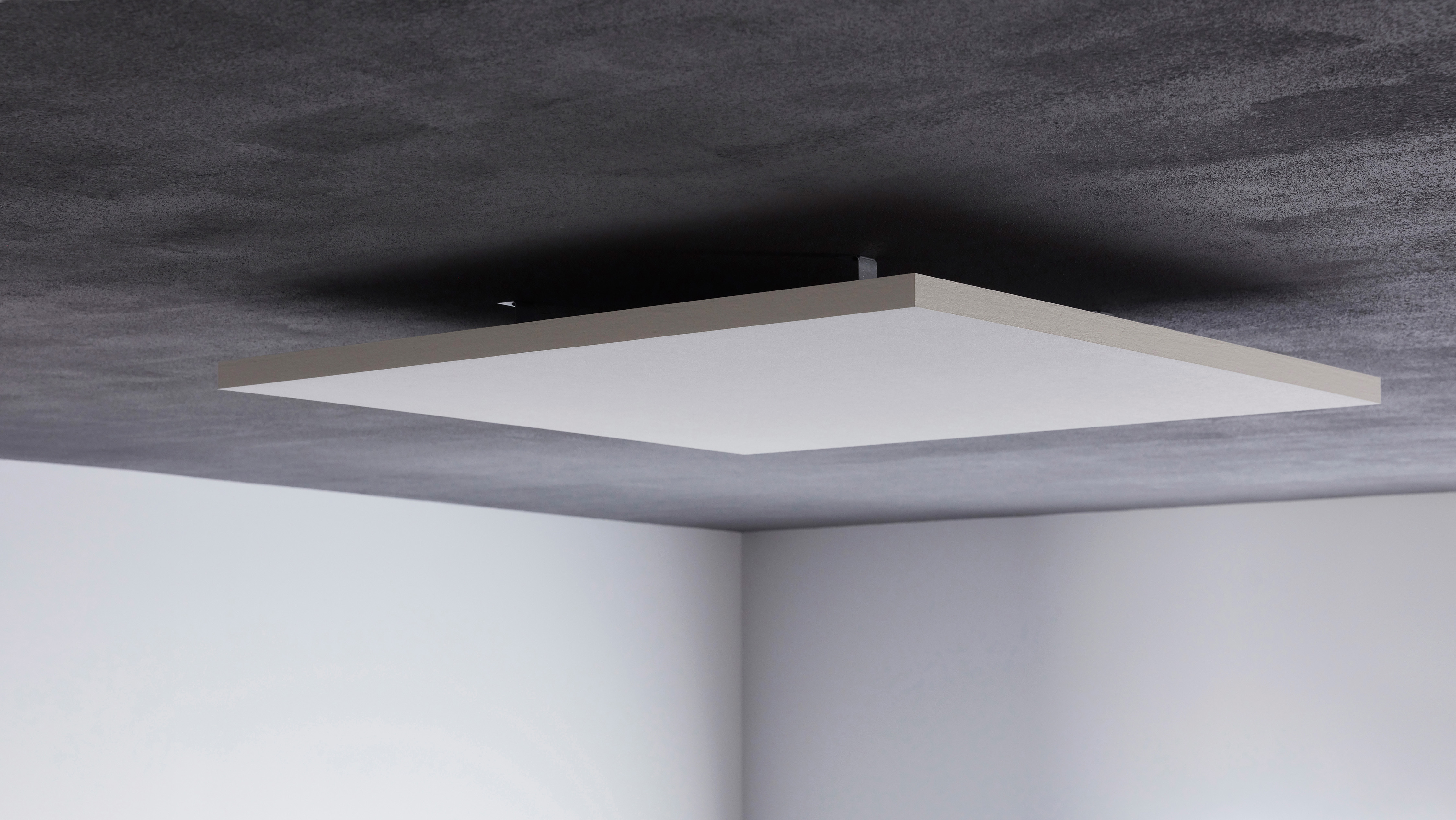

Acoustic panel installed close to soffit

Close to soffit installation

With Connect absorber brackets.

Absorber brackets are available in sizes 50-70 mm or 70-90 mm.

One point fixing installation

With Connect One point fixing.

Available in sizes: ≤1300x1200.

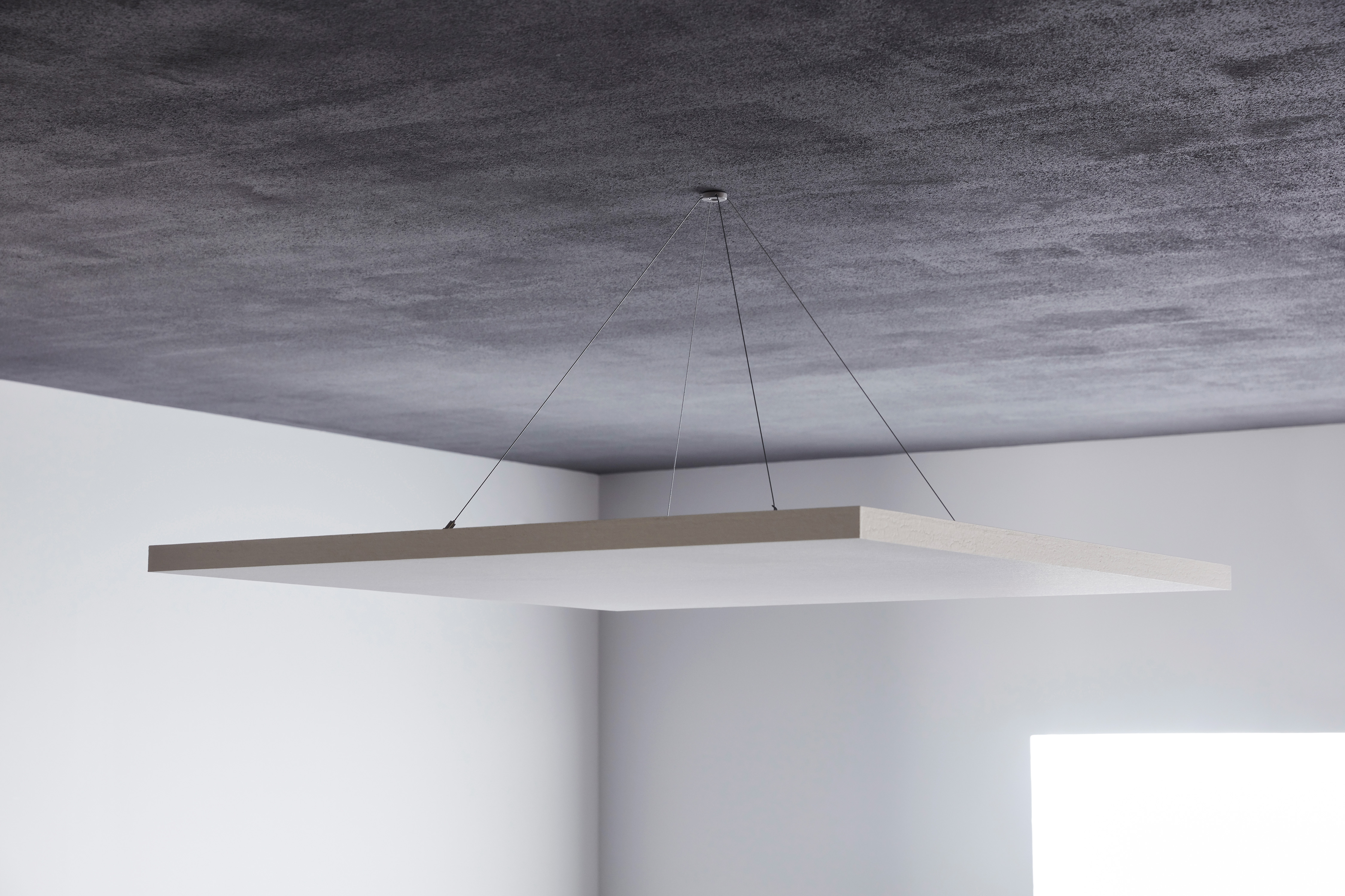

Free-hanging acoustic panel installed with a one point fixing method
